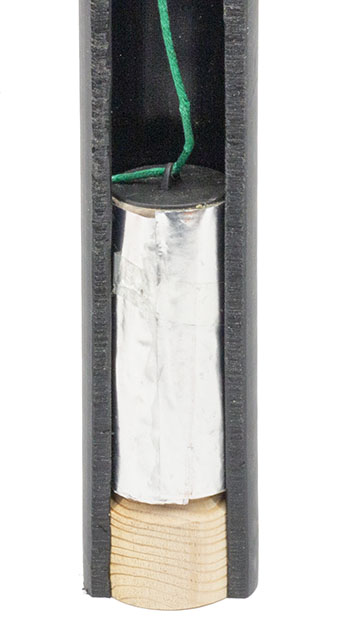

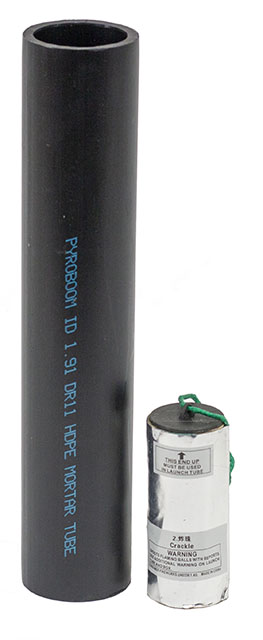

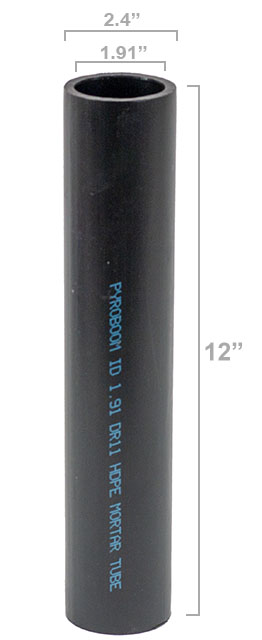

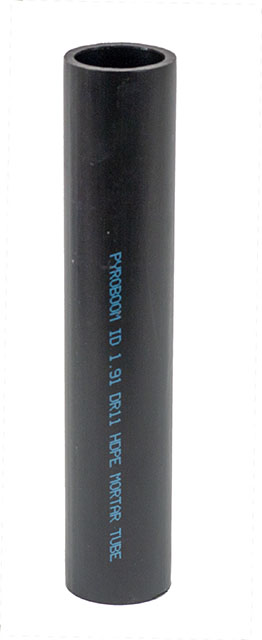

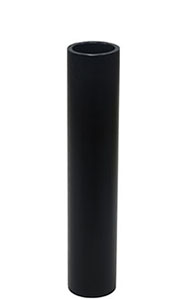

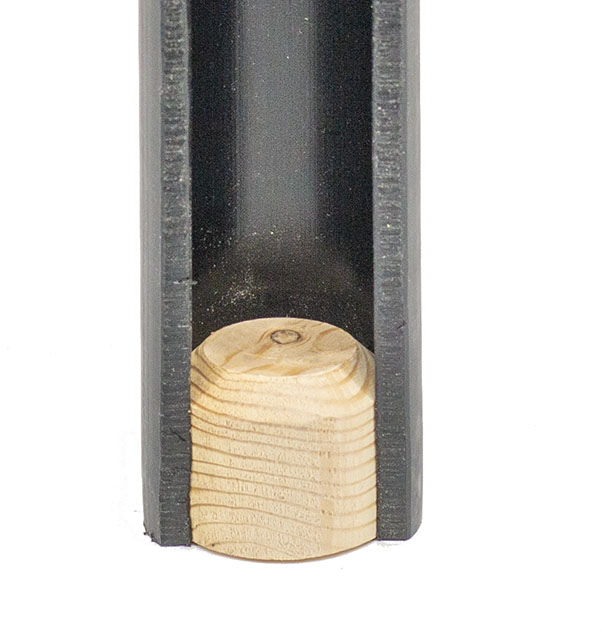

1.91" HDPE DR11 Consumer Mortar Tube (Black) 12" Length

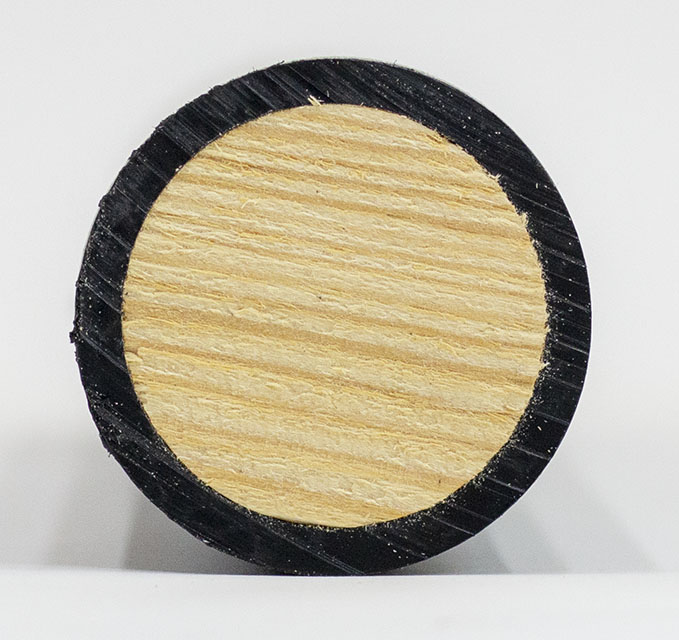

HDPE DR11 plugged mortar tube. This is the most common tube we sell as it's the most universal size for consumer shells. Plug is secured with strong galvanized staples. Can be used for all consumer canister, ball and mine shells. Also can be used for 1.75" salutes. Minimum order quantity: 6
Video:
Don't use PVC!
Inner Diameter: 1.91"Length: 12"Class: ConsumerColor: BlackOuter Diameter: 2.4"DR: DR11
| 1 |
1.91" HDPE DR11 Consumer Mortar Tube (Orange) 12" Length
Orange HDPE DR11 plugged mortar tube. Plug is secured with strong galvanized staples. Can be used for all consumer canister, ball and mine shells. Same dimensions as our popular black DR11 mortar tube (only difference is color).
ID: 1.91"
Length: 12"
Class: Consumer
Color: Orange
Outer Diameter: 2.4"
DR: DR11
| 1159 |

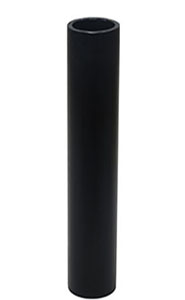

1.91" HDPE DR11 Consumer Mortar Tube (Black) 15" Length
HDPE DR11 plugged mortar tube. These are generally used with shells with a longer leader fuse and it's generally accepted that gives you a higher lift, although it's never been proven. Plug is secured with strong galvanized staples.
ID: 1.91"
Length: 15"
Class: Consumer
Color: Black
Outer Diameter: 2.4"
DR: DR11
| 6 |

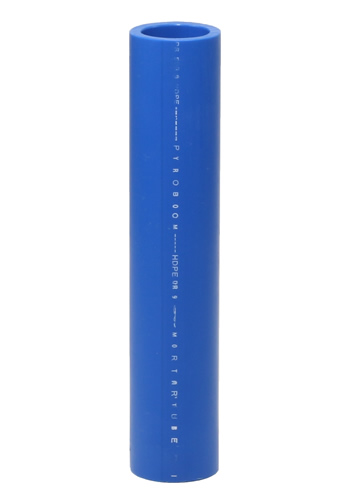

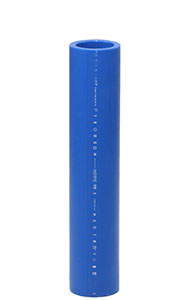

1.81" HDPE DR9 Consumer Mortar Tube (Blue) 12" Length
Blue HDPE DR9 plugged mortar tube. The ID is 1/10" smaller than the standard DR11 mortar. These tubes work well with smaller (less "premium") aerial shells. Plugged is secure with strong galvanized staples.
ID: 1.81"
Length: 12"
Class: Consumer
Color: Blue
Outer Diameter: 2.4"
DR: DR9
| 18 |

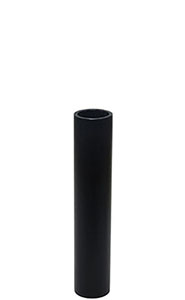

1.25" HDPE DR9 Consumer Mortar Tube (Black) 9" Length
HDPE Plugged 1.25" ID (inner diameter) DR9 mortar tube. This is our smallest tube and for use with 1" shells consumer aerial shells. We recommend measuring the diameter your shells (include the fuse) before you make this purchase. We are hearing that some shells are advertised as 1" shells, but they are bigger than 1.25" (which means they won't work with these tubes).
ID: 1.25"
Length: 9"
Class: Consumer
Color: Black
Outer Diameter: 1.65"
DR: DR9
| 56 |

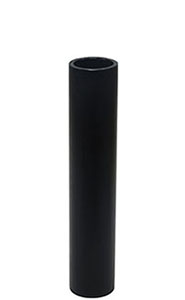

1.5" HDPE DR11 Consumer Mortar Tube (Black) 11.5" Length
HDPE DR11 plugged mortar tube. The length of the tube is 11.5" and the inner diameter is 1.5". We recommend you measure the outer diameter of the shell and include the leader fuse before you purchase. The outer diameter needs to be less than 1.5" for the shell to fit into this tube. This tube is used for smaller shells (non standard size).
Inner Diameter: 1.5"
Outer Diameter: 1.94"
Length: 11.5"
Color: Black
Class: Consumer
DR: DR11
| 1252 |
The Rack Book
A 20-page booklet about basic consumer rack design. If you are new to rack building then this book is for you. Covers safety and the recommended style to build consumer racks. Also included are several pictures of rack builds from across the country. A great add-on item.
| 63 |

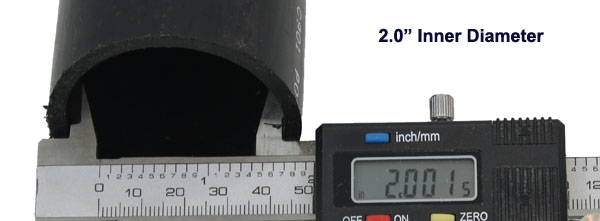

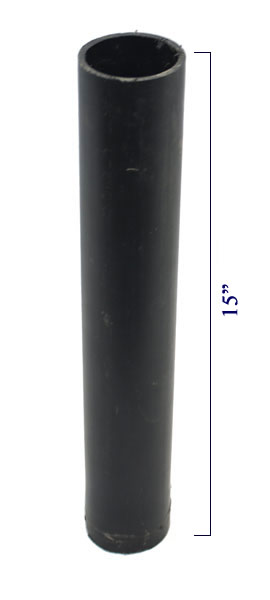

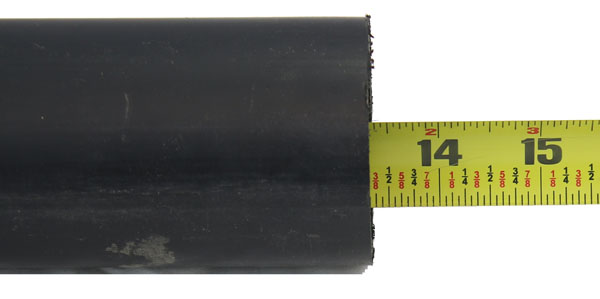

2.0" HDPE DR17 Display Mortar Tube 15" Length

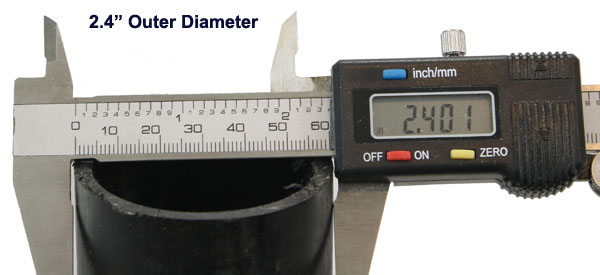

Plugged HDPE DR17 display mortar tube. These are not to be used with consumer mortar tubes, but for 2" display shells. These tubes will fit into a standard consumer mortar rack (the have the same outer diameter of a 1.91" DR11 mortar tube). Plug is secured with galvanized staples.
ID: 2.0"
Length: 15"
Class: Display
Color: Black
Outer Diameter: 2.4"
DR: DR17
| 98 |
2.5" HDPE DR17 Display Mortar Tube 18" Length

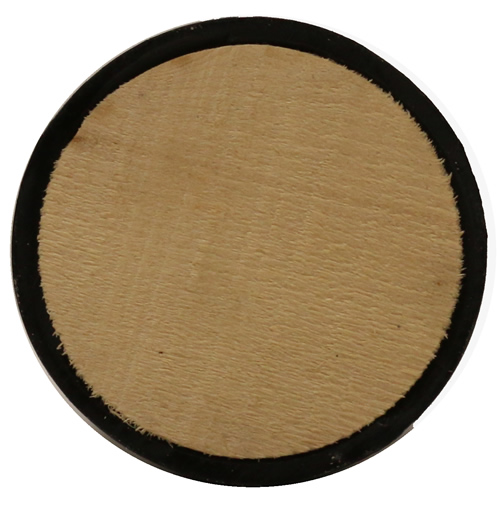

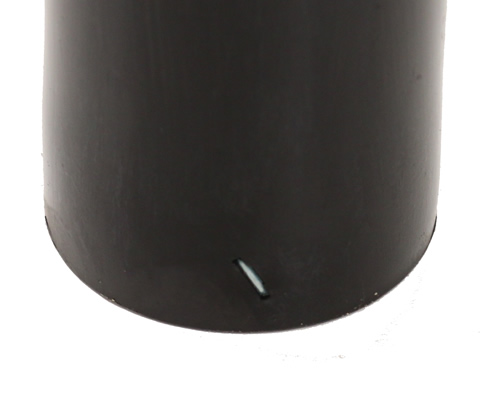

HDPE 2.5" ID DR17 display mortar tube. Solid wood plug and is secured with galvanized staples. 18" long. For use with 2.5" display shells.
ID: 2.5"
Length: 18"
Class: Display
Color: Black
Outer Diameter: 2.9"
DR: DR17
| 1133 |

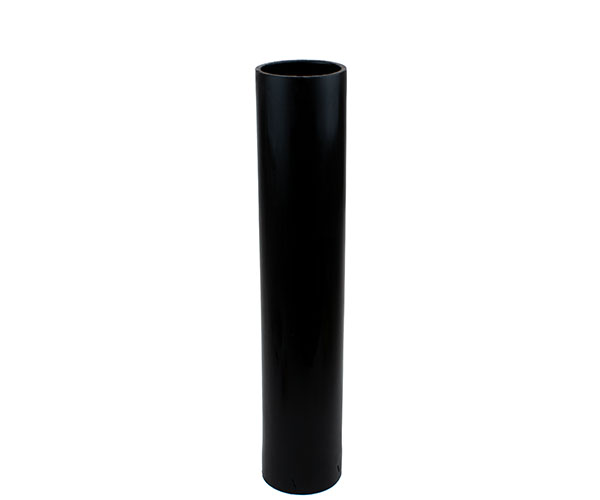

3.0" HDPE DR17 Display Mortar Tube 18" Length

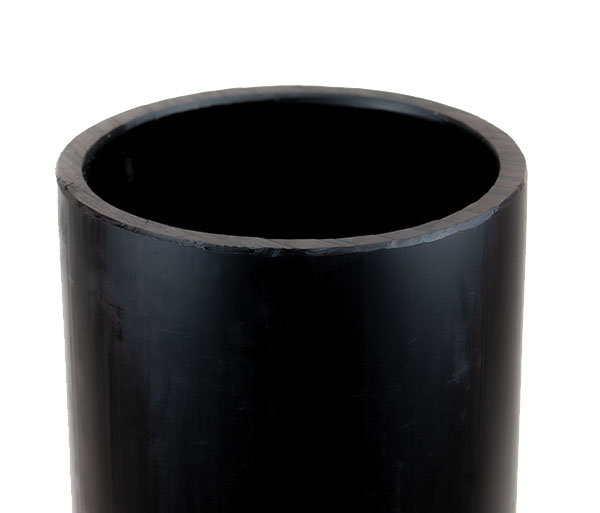

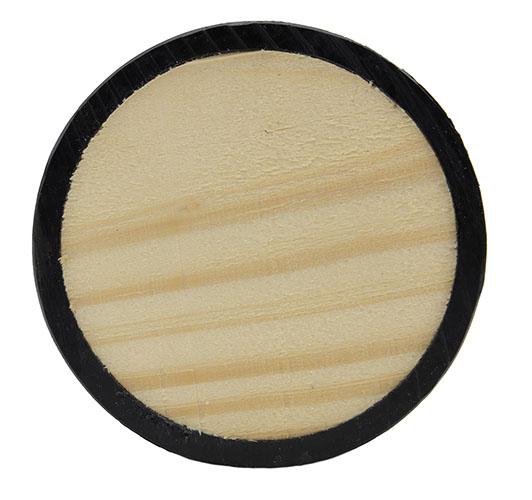

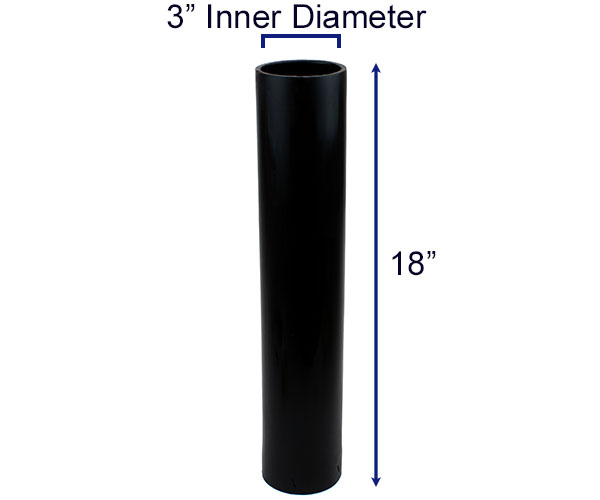

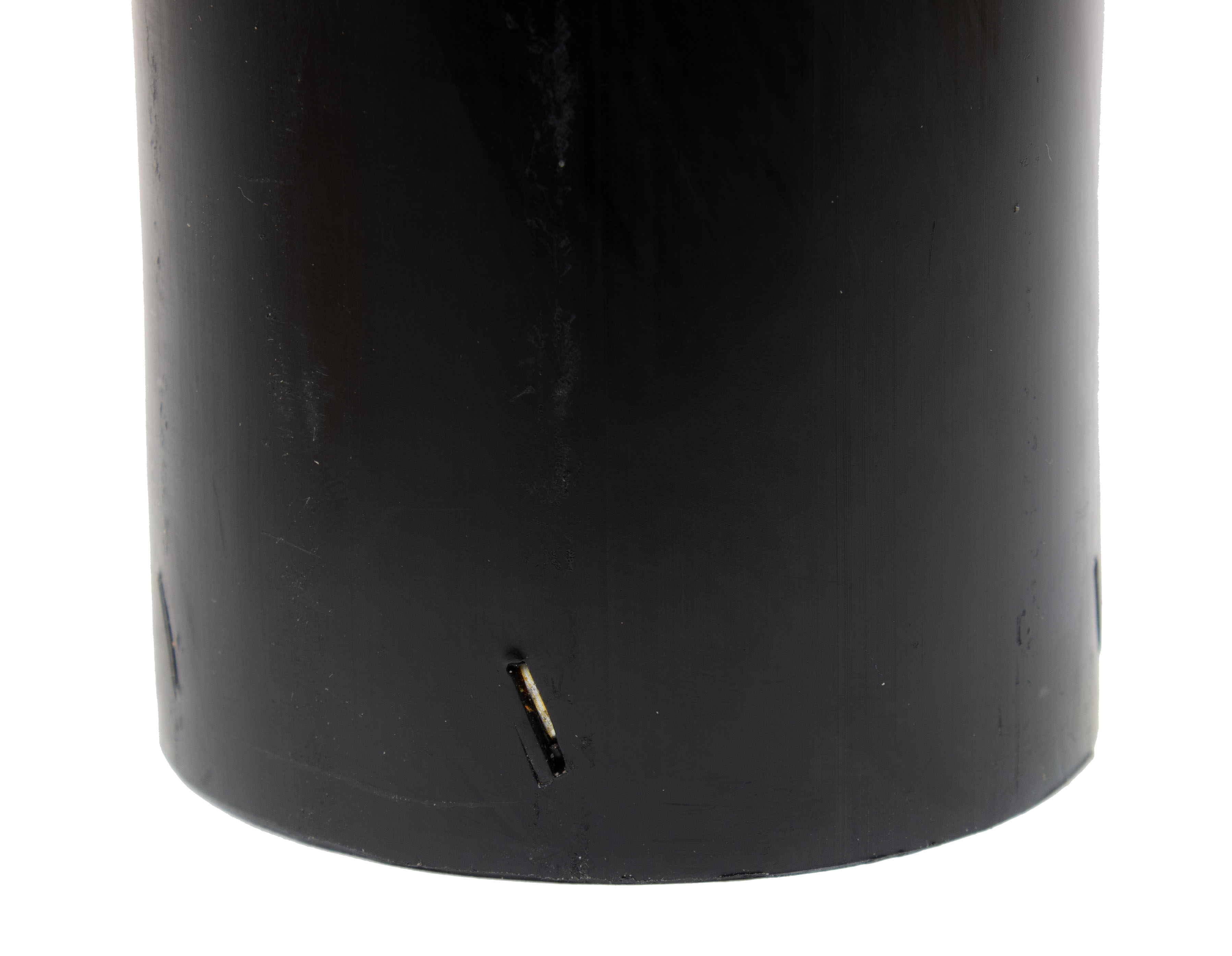

Plugged HDPE 3.0" ID (inner diameter) DR17 display mortar tube. For use with 3" diameter professional 1.3 display aerial shells. The solid Southern Yellow Pine plug is secured with with 5 heavy duty galvanized staples. Professional use only.
ID: 3.0"
Length: 18"
Class: Display
Color: Black
Outer Diameter: 3.52"
DR: DR17
| 61 |

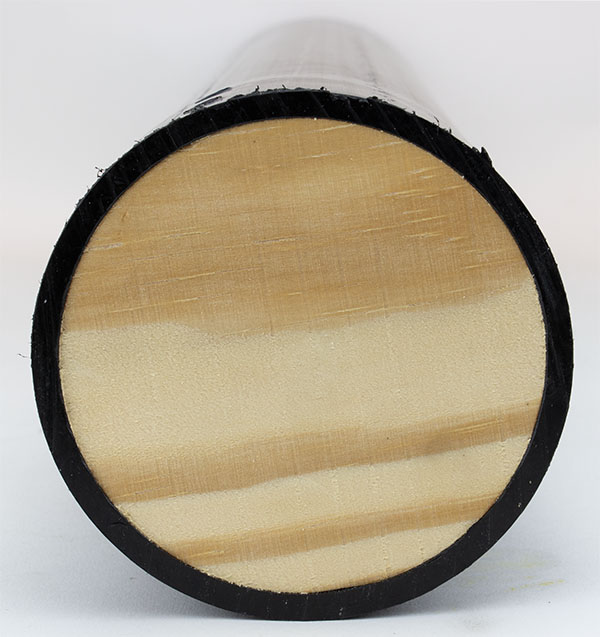

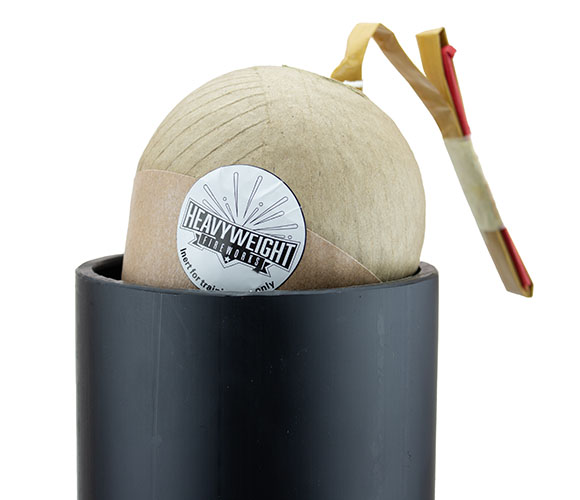

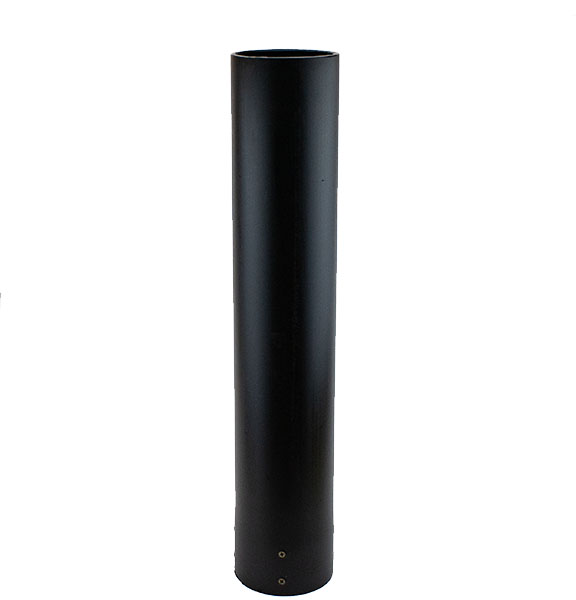

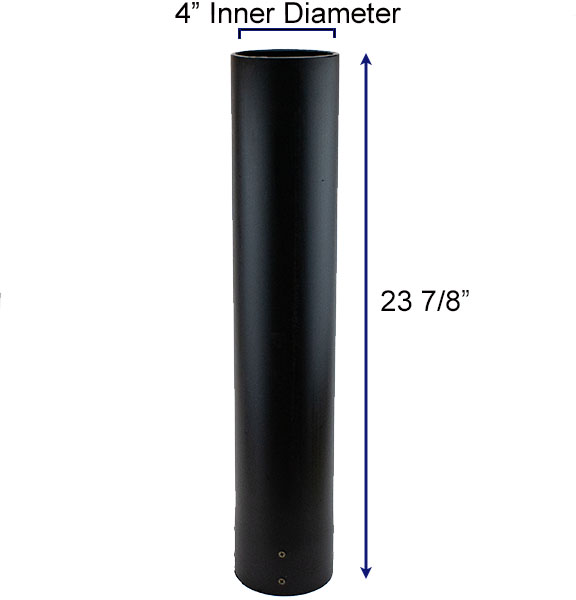

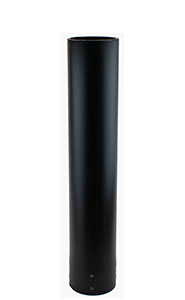

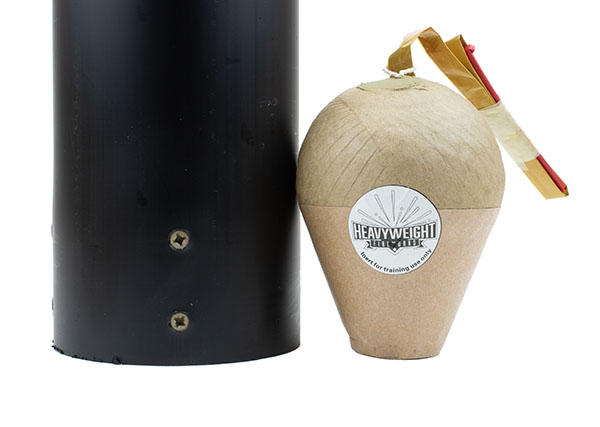

4.0" HDPE DR21 Display Mortar Tube 24" Length

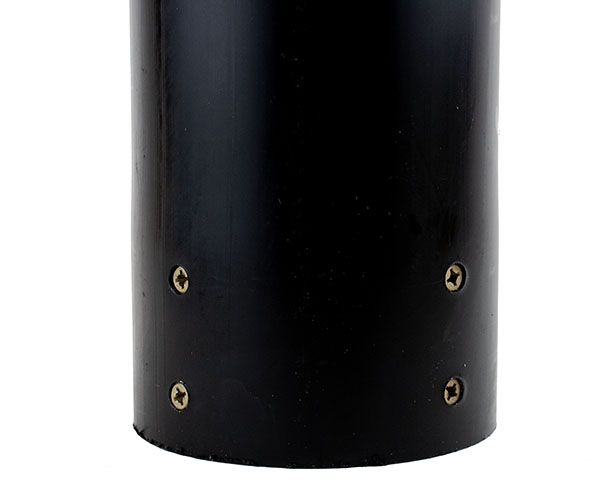

HDPE 4" DR21 display mortar tube. It has a 4.0" inner diameter (ID). The plug is 3" tall and has 8 exterior grade screws to hold the plug in place. Length is just shy of 24 inches. For use with 4" professional display shells.
ID: 4.0"
Length: 24"
Class: Display
Color: Black
Outer Diameter: 4.5"
DR: DR21
| 1103 |

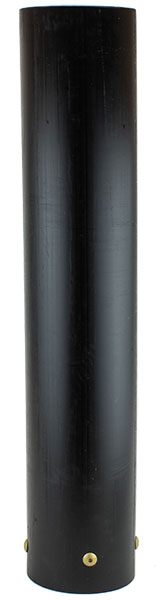

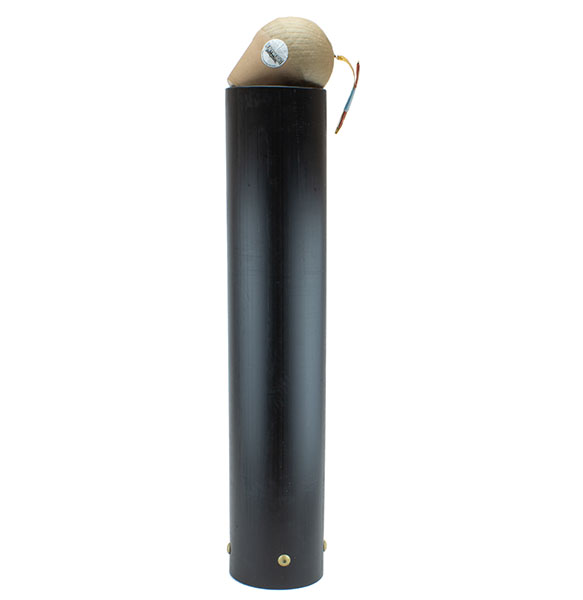

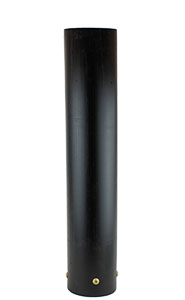

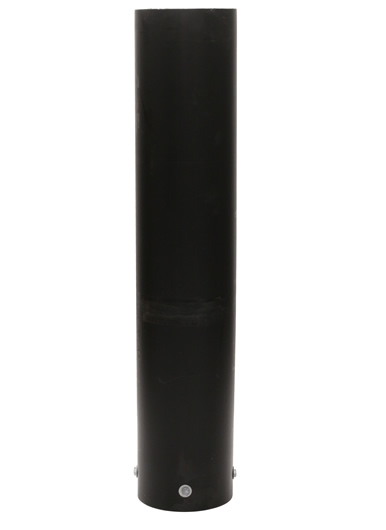

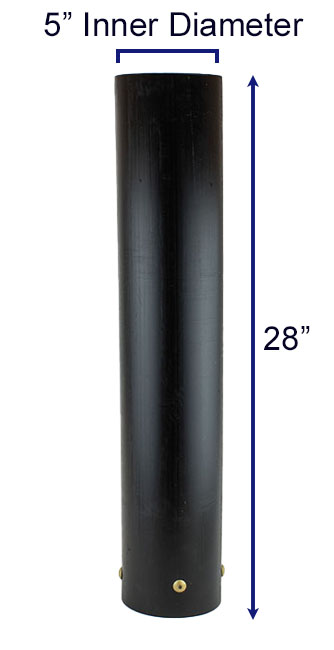

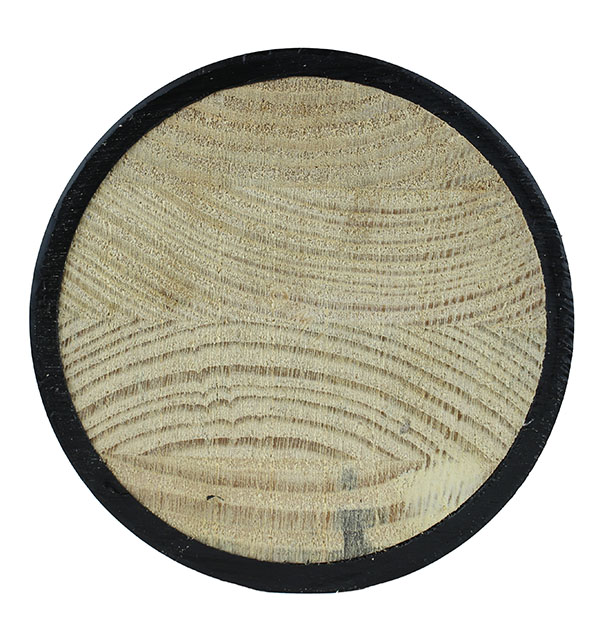

5.0" HDPE DR21 Display Mortar Tube 28" Length
PRE-ORDER. Will ship in early November of 2023

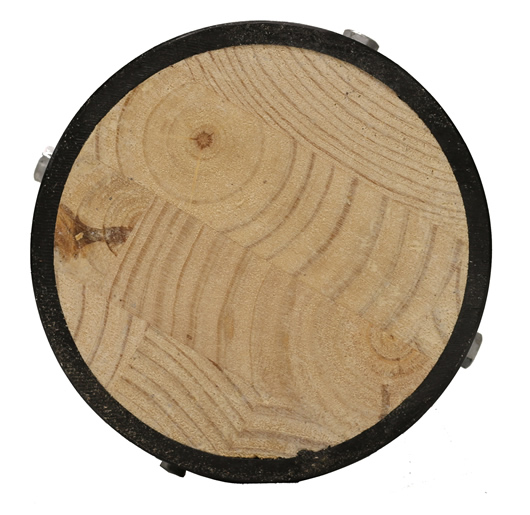

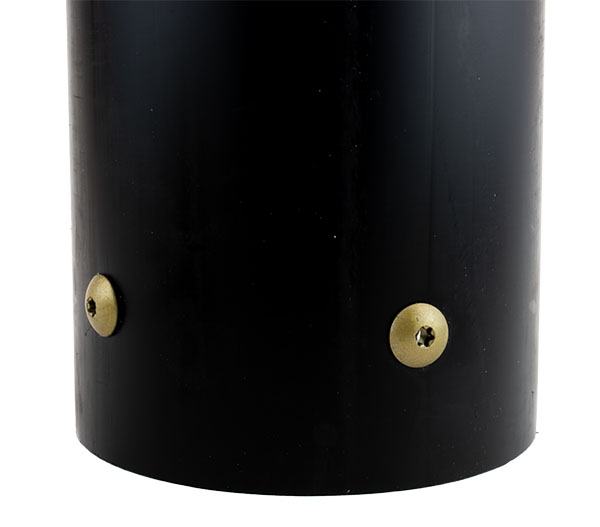

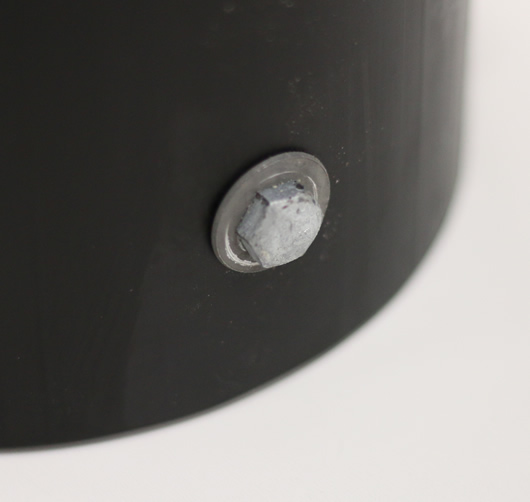

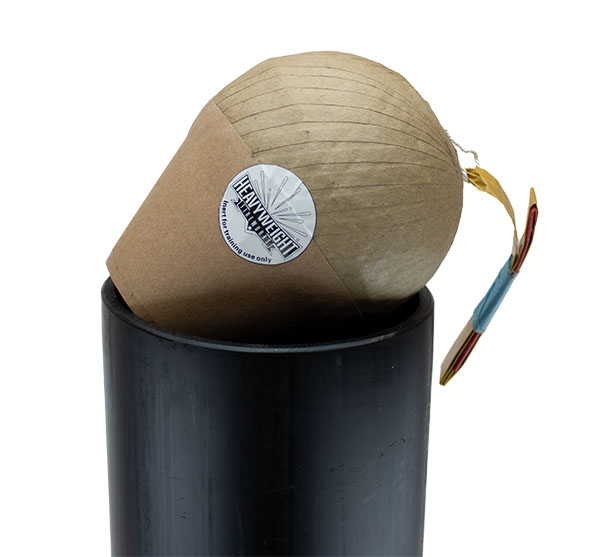

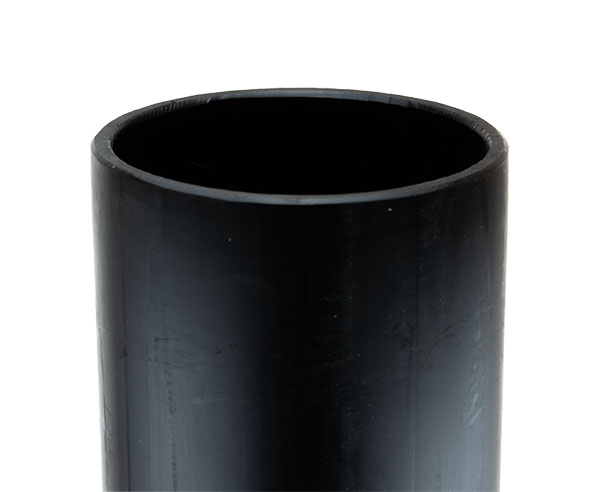

5" HDPE DR21 display mortar tube. The tube is plugged with a 3" tall solid wood plug. Secured with 4 heavy duty exterior grade screws. The mouth is burr free. This tube only is used for 5" diameter display shells (not 5" tall consumer canister shells). Professional use only.
Inner Diameter: 5.0"
Length: 28"
Class: Display
Color: Black
Outer Diameter: 5.55"
DR: DR21
| 1126 |

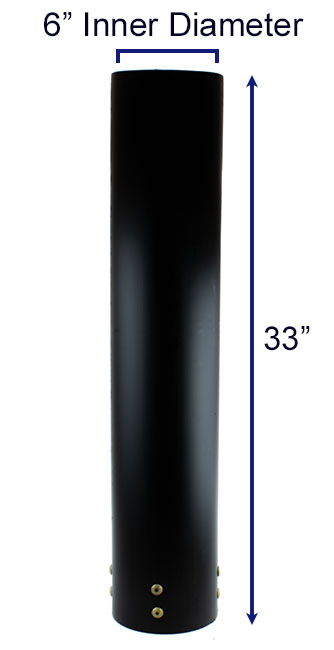

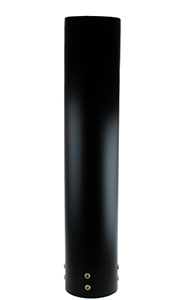

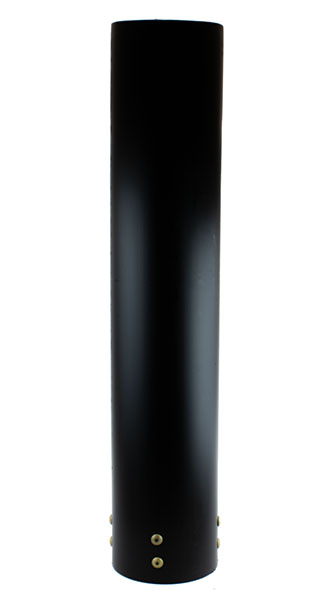

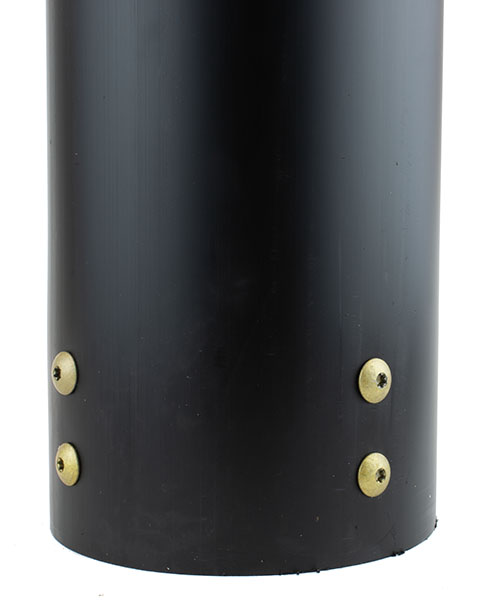

6.0" HDPE DR21 Display Mortar Tube 33" Length

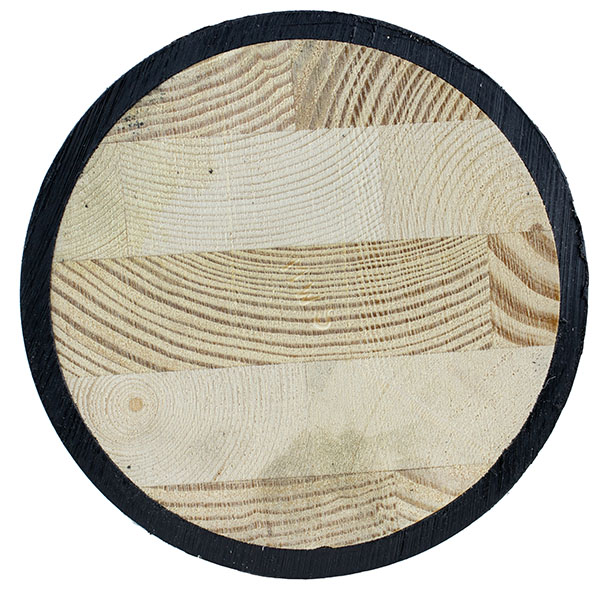

6" HDPE DR21 display mortar tube. The tube is plugged with a large 4" thick solid wood plug and secured with 8 heavy duty exterior grade galvanized screws. For use with 6" 1.3g display aerial shells (professional use only). Tube will need to be put in a well-built mortar rack or buried 2/3 deep into the ground.
Inner Diameter: 6.0"
Length: 33"
Class: Display
Color: Black
Outer Diameter: 6.5"
DR: DR21
Weight: 10lbs (approx.)
| 1137 |

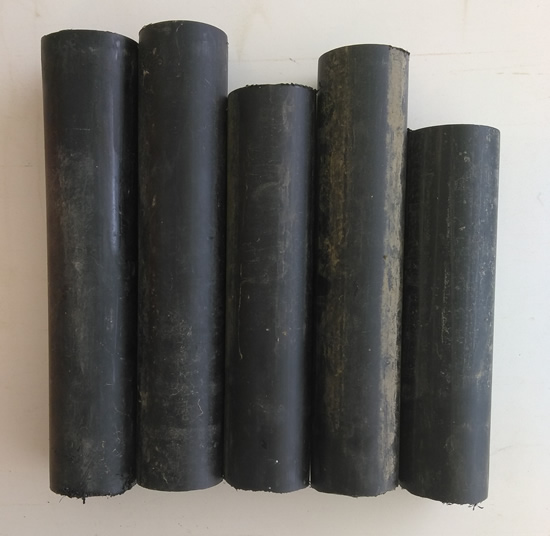

DR11 irregular-No returns/refunds
Irregular HDPE DR11 mortar. They might be plugged, but it's unlikely. They will be black or orange in color (there is no performance difference in color). They also might used tubes (used only once). These are extra mortars/pipe we have laying around, but are not good enough to sell as 12" DR11. They might be dirty, missed stapled and some of them have been sitting outside. They also may have staples that are not fully inserted. The length will vary from 8" to 12 inches (it's possible these will be shorter than 8", but we will do our best not to include these). Some of them might be egg-shaped (out of round). Please understand that you are buying a grab bag of tubes with no consistency. No returns or refunds. 1.91" ID and 2.4" OD. By ordering these you agree that you won't use these for aerial shells unless they are 11.5" or longer.
